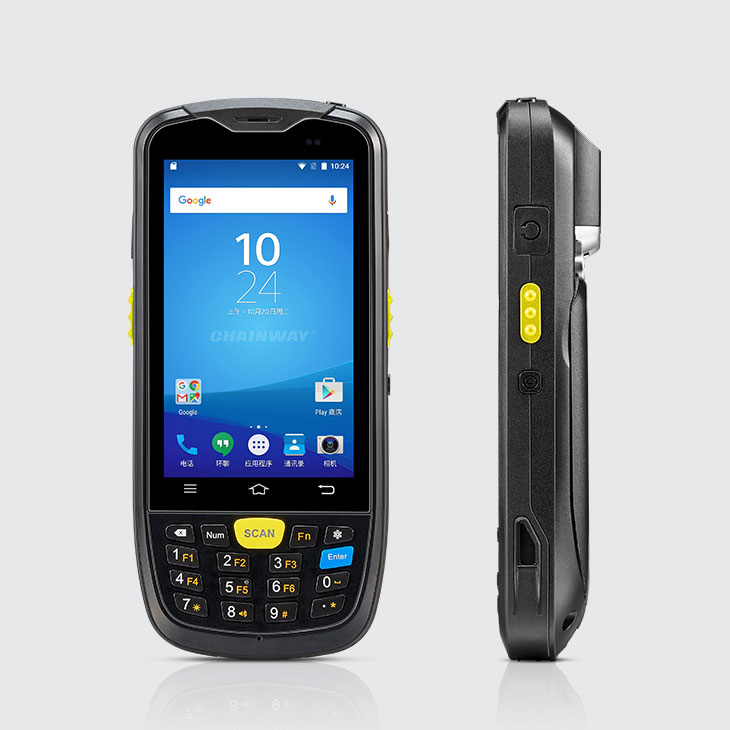

Máy kiểm kho Chainway C6000

Tính chất vật lý

• Dimensions : 157.6 x 73.7 x 29 mm / 6.2 x 2.9 x 1.1 in.
• Weight : 292 g / 10.3 oz.
• Display : 4'' WVGA (480*800), 16.7 M colors
• Touch Panel : Rugged dual touch capacitive touch panel
• Power
  • Main battery: Li-ion, rechargeable, 4200 mAh
  • Standby: over 300 hours
  • Continuous use: over 12 hours (depending on user environment)
  • Charging time: 3-4 hours (with standard adaptor and USB cable)
• Vibrator : Support
• Expansion Slot : 1 slot for SIM card, 1 slot for MircoSD(TF)
• Interfaces : USB Micro-B, OTG
• Audio : MIC, RECEIVER, Loudspeaker(0.8W), support voice call
• Keypad :  3 TP soft keys, 3 side keys, numeric keyboard
• Sensors : Proximity sensor, light sensor, accelerometer sensor

Kết nối :

• WLAN :  IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
• WWAN
  • 2G: 850/900/1800/1900MHz
  • 3G: WCDMA: B1, B2, B4, B5, B8
  • 4G: TDD-LTE: B38, B39, B40, B41
  •        FDD-LTE: B1, B2, B3, B4, B5, B7, B8, B12, B17, B20
  • WWAN (Others) :  Depending on the country's ISP
• Bluetooth : Bluetooth 4.0, BLE
• GNSS : GPS/AGPS, GLONASS, BeiDou, internal antenna

Hệ điều hành :

• Operating System Chainway C6000 (A6) : Android 6.0

• CPU       Cortex A-53 1.3 GHz Quad-core
• RAM+ROM         2GB + 16GB
• 1GB + 8GB (optional)
• Expansion : Supports up to 128 GB Micro SD card

• Operating Temp.             -4°F to 122°F / -20°C to 50°C
• Storage Temp.  -40°F to 158°F / -40°C to 70°C
• Humidity            5%RH - 95%RH non condensing
• Drop Specification          Multiple 2.0 m / 6.56 ft. drops to concrete across the operating temperature range
• Tumble Specification      1000 x 0.5 m / 1.64 ft. falls at room temperature
• Sealing  IP65 per IEC sealing specifications
• ESD       ±15 KV air discharge, ±6 KV conductive discharge

Lựa chọn Đầu đọc mã vạch :

• 1D Linear Scanner : Zebra SE965 / Honeywell N4313 / UE966
• 2D Imager Scanner : Zebra SE4710; Honeywell N6603
• 1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of5, Codabar, MSI, RSS, etc
• 2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc

Camera

• Camera 8 / 13MP Autofocus with Flash

NFC

• Frequency : 13.56 MHz
• Protocol : ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc
• Chips : M1 card (S50, S70), CPU card, NFC tags, etc
• Range : 2-4cm
• Note * Pistol grip is optional, NFC can not coexist with the pistol grip
