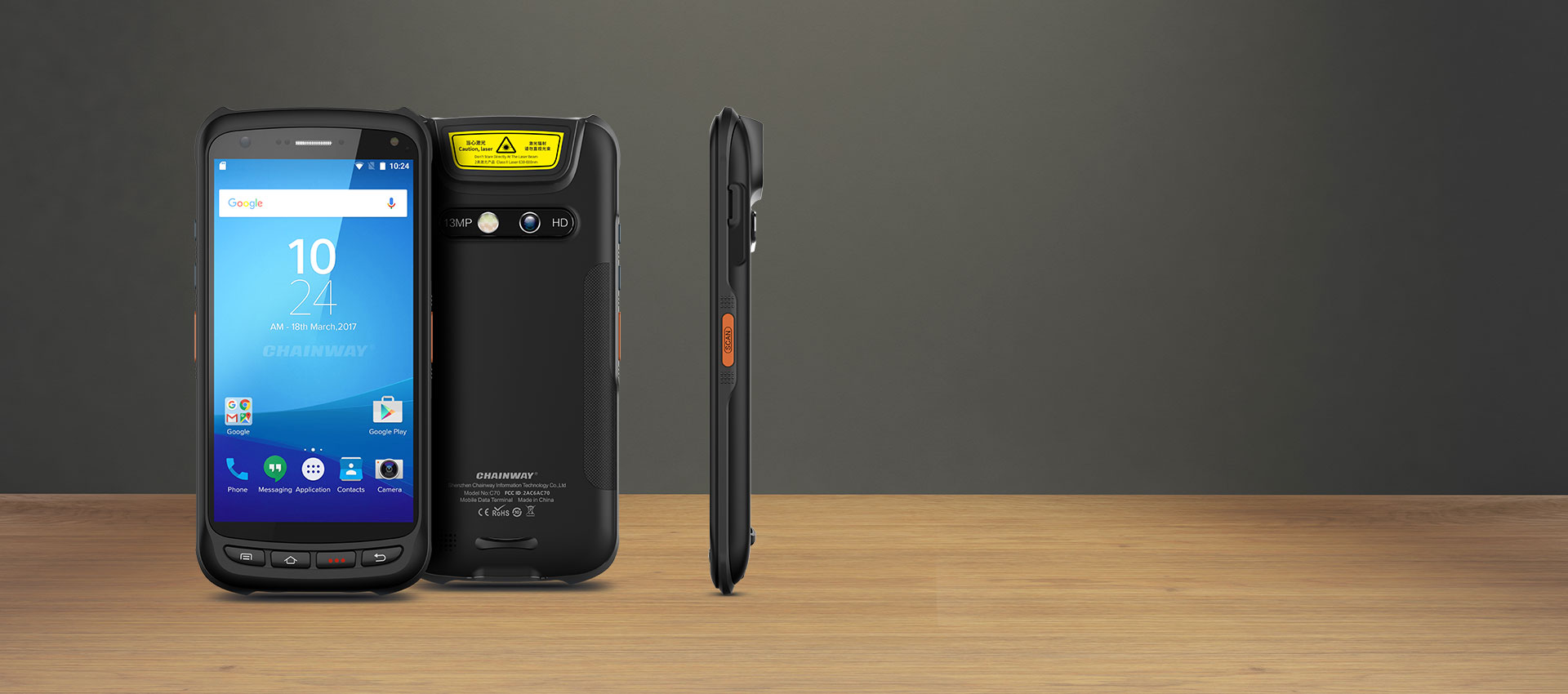

Máy kiểm kho Chainway C70

Tính chất vật lý

• Dimensions : 163.8 x 79.2 x 13.8 mm / 6.45 x 3.12 x 0.54 in.

• Weight : < 242 g / 8.5 oz.

• Display : 5.2'' IPS FHD 1920 x 1080P

• Touch Panel : Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

• Power

  • Main battery: Li-ion, rechargeable, 4000 mAh

  • Standby: over 300 hours

  • Continuous use: over 12 hours (depending on user environment)

  • Charging time: 2-3 hours (with standard adaptor and USB cable)

• Vibrator : Support

• Expansion Slot : 1 slot for SIM card, 1 slot for MircoSD(TF)

• Interfaces : USB Micro-B, OTG

• Audio : Speaker, 2 microphones

• Keypad :  34 front buttons, 1 side button, 2 scan keys, 1 multifunctional key

• Sensors : Gravity sensor, Light Sensor, Proximity Sensor, Vibration Motor

Kết nối :

• WLAN :  IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna

• WWAN

  • 2G: 850/900/1800/1900MHz

  • 3G: WCDMA: B1, B2, B4, B5, B8

  • 4G: TDD-LTE: B38, B39, B40, B41

  •        FDD-LTE: B1, B2, B3, B4, B5, B7, B8, B12, B17, B20

  • WWAN (Others) :  Depending on the country's ISP

• Bluetooth : Bluetooth 4.0, BLE

• GNSS : GPS/AGPS, GLONASS, BeiDou, internal antenna

Hệ điều hành :

• Operating System Chainway C70 : Android 11.0

• CPU       Cortex-A53 2.3 GHz Octa-core

• RAM+ROM         3 GB + 32 GB / 4 GB + 64 GB

• Expansion : Supports up to 128 GB Micro SD card

• Operating Temp.             -4°F to 122°F / -20°C to 50°C

• Storage Temp.  -40°F to 158°F / -40°C to 70°C

• Humidity            5%RH - 95%RH non condensing

• Drop Specification          Multiple 2.0 m / 6.56 ft. drops to concrete across the operating temperature range

• Tumble Specification      1000 x 0.5 m / 1.64 ft. falls at room temperature

• Sealing  IP65 per IEC sealing specifications

• ESD       ±15 KV air discharge, ±6 KV conductive discharge

Lựa chọn Đầu đọc mã vạch :

• 2D Imager Scanner : Zebra SE4710; Honeywell N6603

• 1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of5, Codabar, MSI, RSS, etc

• 2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc

Camera

• Camera 8 / 13MP Autofocus with Flash

NFC

• Frequency : 13.56 MHz

• Protocol : ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc

• Chips : M1 card (S50, S70), CPU card, NFC tags, etc

• Range : 2-4cm

• Note * Pistol grip is optional, NFC can not coexist with the pistol grip
