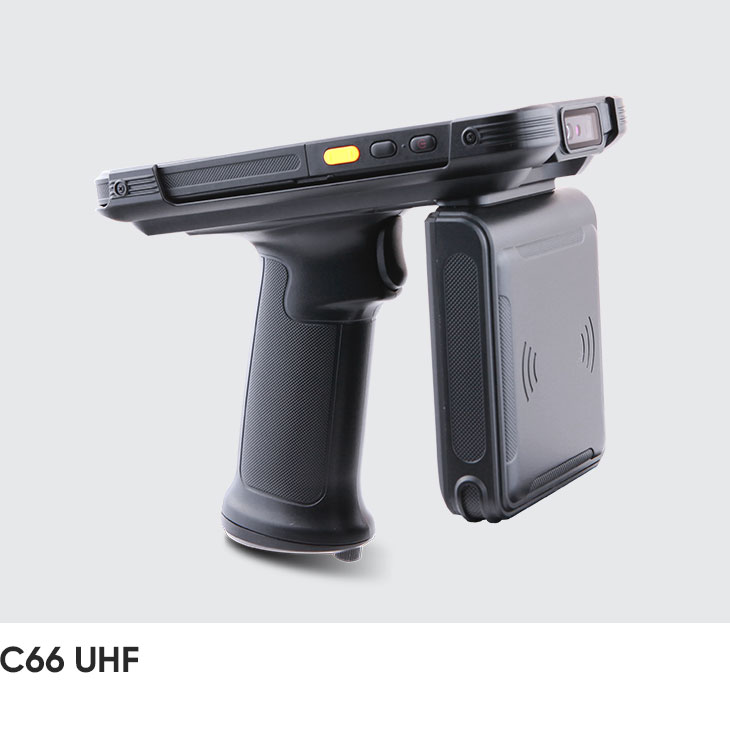

Máy kiểm kho Chainway C66 UHF

Tính chất vật lý

• Dimensions : 160.0 x 76.0 x 15.5 / 17.0 mm.
• Weight : 287 g / 10.12 oz. (device with battery).
• Display : 5.5-inch high definition full display (18:9) , IPS LTPS 1440 x 720
• Touch Panel : Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
• Power
  • Main battery: Removable main battery (normal version:4420 mAh ; Android 11.0 with fingerprint / built-in UHF / volume measurement version: 5200mAh )
  • 5200 mAh optional pistol battery, support QC 3.0 and RTC
  • Continuous use: over 12 hours (depending on user environment)
  • Charging time: 2-3 hours (with standard adaptor and USB cable)
• Vibrator : Support
• Expansion Slot : 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
• Interfaces : Android 9.0: USB Type-C, USB 3.0, OTG
  •  Android 13 : USB Type-C, USB 3.1, OTG
• Audio : Speaker, 2 microphones
• Keypad :  34 front buttons, 1 side button, 2 scan keys, 1 multifunctional key
• Sensors : Gravity sensor, Light Sensor, Proximity Sensor, Vibration Motor

Kết nối :

• WLAN :  IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
• WWAN
  • 2G: 850/900/1800/1900MHz
  • 3G: WCDMA: B1, B2, B4, B5, B8
  • 4G: TDD-LTE: B38, B39, B40, B41
  • FDD-LTE: B1, B2, B3, B4, B5, B7, B8, B12, B17, B20
  • WWAN (Others) :  Depending on the country's ISP
• Bluetooth : Bluetooth 4.0, BLE
• GNSS : GPS/AGPS, GLONASS, BeiDou, internal antenna

Hệ điều hành :

• Operating System Chainway C66 UHF : Android 13

• CPU : Qualcomm 2.0 GHz Octa-core
• RAM+ROM : 6GB + 128GB
• Expansion : Supports up to 128 GB Micro SD card

Lựa chọn Đầu đọc mã vạch :

• 2D Imager Scanner : Zebra SE4710; Honeywell N6603
• 1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of5, Codabar, MSI, RSS, etc
• 2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc

Camera

• Camera 8 / 13MP Autofocus with Flash

NFC

• Frequency : 13.56 MHz
• Protocol : ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc
• Chips : M1 card (S50, S70), CPU card, NFC tags, etc
• Range : 2-4cm
• Note * Pistol grip is optional, NFC can not coexist with the pistol grip

RFID

• Self-Developed UHF Module Based on Impinj E Series chips
• Impinj Gen2X for Enhanced UHF Performance
• 1300+ Tags/s Read Rate
• 30m+ / 100ft.+ Read Range
